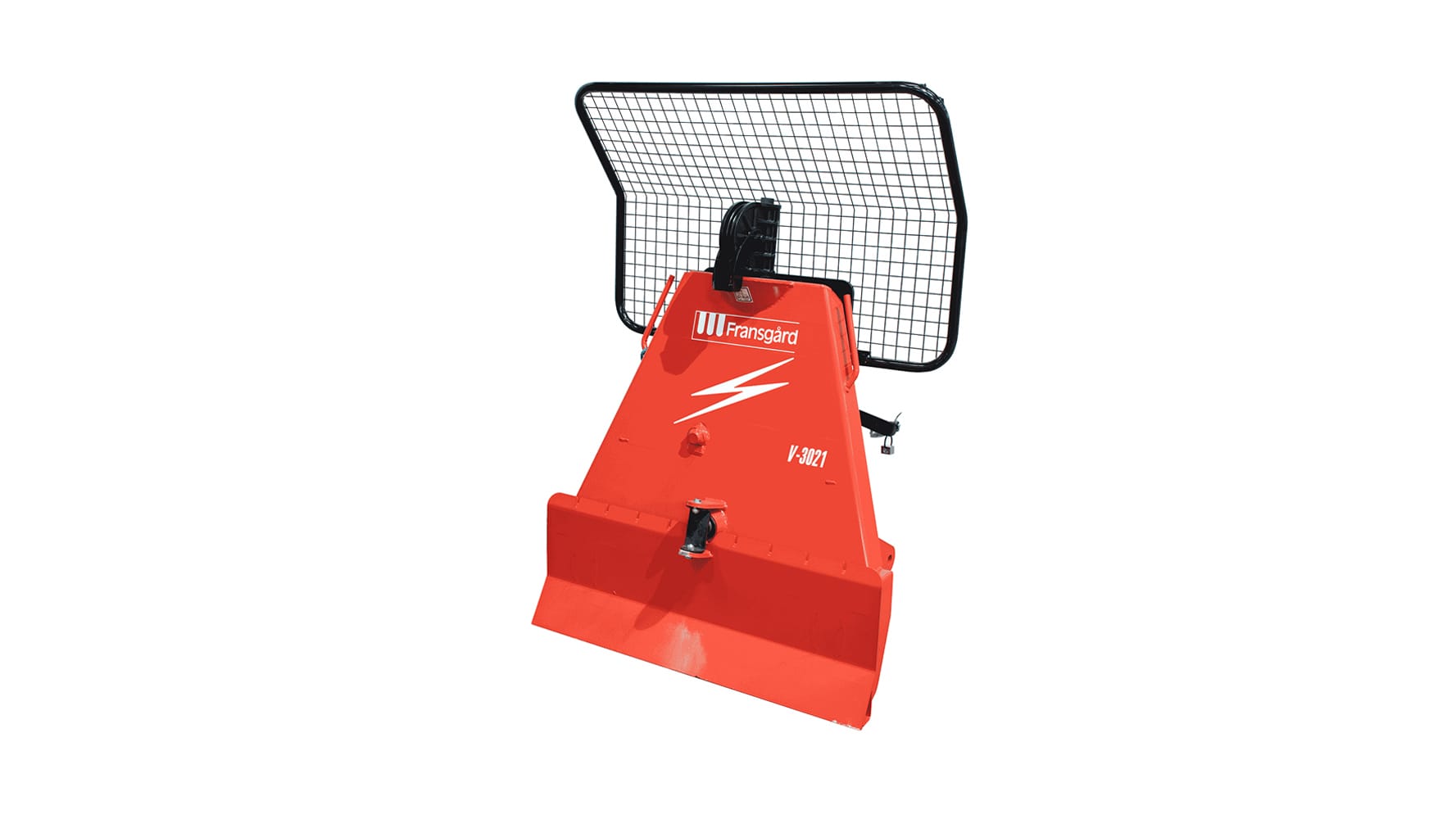

Fransgård V-3021 Forestry Winch

$5,120.00

Price

Print
Call Us
Make:
Fransgard
Model:
V-3021
Category:
Forestry Winch

The V-3021 winch is the smallest winch available in the Fransgård lineup. Ideal for tractors with 25-45 horsepower. This is a great option for small logging operations.

Fransgard three-point winches are a top choice for both professional and hobby foresters for a variety of reasons. The pulley height, single-rope engagement system and easy clutch adjustments make maintenance quick and simple. These features set Fransgard winches apart with straightforward and user-friendly operation, as well as simple part replacement and maintenance.

The optimal height and weight of these winches also help to optimize your tractor’s fuel efficiency, horsepower, and traction.

  • 3-Pt: Cat 1
  • Cable: 133′ x 5/16″
  • Butt Plate HxW:  15″ x 40″
  • Total Height: 57
  • Eng. HP Min-Max: 25-45
  • Pulling Capacity: 6600
  • Weight: 385
Technical Data V-3021 V-3521 V-4021 V-5021 V-6521
Tractive force 6,614 lb 7,716 lb 8,818 lb 11,023 lb 14,330 lb
Weight 386 lb 408 lb 657 lb 688 lb 972 lb
Wire capacity 148 / 131 ft 148 / 131 ft 197 / 164 ft 197 / 164 ft 197 / 164 ft
Diameter 0.31 in 0.31 in 0.39 in 0.39 in 0.43 in
Wire breaking strength 11,564 lb 11,564 lb 18,078 lb 18,078 lb 21,868 lb
Retraction rate per sec. (540 rpm) 2 – 5 ft/s 2 – 5 ft/s 2 – 5 ft/s 2 – 5 ft/s 2 – 5 ft/s
Height (incl. grill) 4.76 ft 5.09 ft 5.74 ft 6.07 ft 7.05 ft
Protective grill 28 × 41 in 28 × 41 in 28 × 41 in 28 × 41 in 28 × 41 in
Top roller 47 in 51 in 59 in 63 in 71 in
Bottom roller (accessory) 17 in 19 in 30 in 33 in 33 in
Dozer blade 15 × 39 in 19 × 49 in 22 × 59 in 26 × 59 in 28 × 59 in
PTO axle height 15 in 19 in 20 in 24 in 22 in
3-point suspension Cat I Cat I Cat I & II Cat I & II Cat II & III
Recommended tractor power 25 – 45 HP 25 – 45 HP 35 – 65 HP 40 – 70 HP 60 – 110 HP
