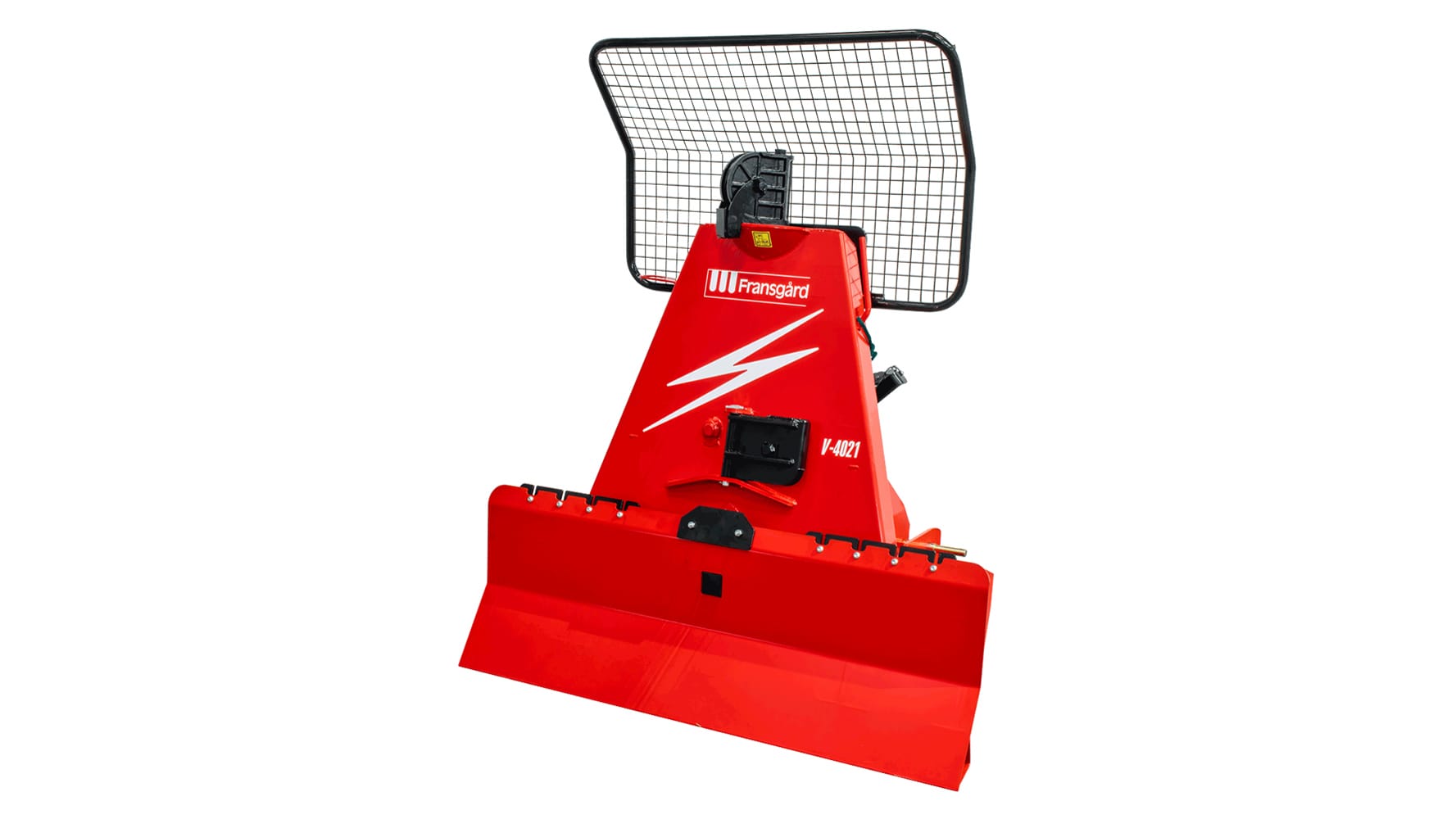

Fransgård V-4021 Forestry Winch

$6,230.00

Price

Call Us

Make:

Fransgard

Model:

4021

Category:

Forestry Winch

The V4021 is a great option for operations requiring a larger, more heavy-duty winch. Ideal for tractors with 35-65 horsepower.

Fransgard three-point winches are a top choice for both professional and hobby foresters for a variety of reasons. The pulley height, single-rope engagement system and easy clutch adjustments make maintenance quick and simple. These features set Fransgard winches apart with straightforward and user-friendly operation, as well as simple part replacement and maintenance.

The optimal height and weight of these winches also help to optimize your tractor’s fuel efficiency, horsepower, and traction.

3-Pt: Cat 1 & 2
Cable: 167’ x 3/8”
Butt Plate HxW: 22″ x 59″
Total Height: 69″
Eng. HP Min-Max: 35 – 65
Pulling Capacity: 8800
Weight: 657

Technical Data	V-3021	V-3521	V-4021	V-5021	V-6521
Tractive force	6,614 lb	7,716 lb	8,818 lb	11,023 lb	14,330 lb
Weight	386 lb	408 lb	657 lb	688 lb	972 lb
Wire capacity	148 / 131 ft	148 / 131 ft	197 / 164 ft	197 / 164 ft	197 / 164 ft
Diameter	0.31 in	0.31 in	0.39 in	0.39 in	0.43 in
Wire breaking strength	11,564 lb	11,564 lb	18,078 lb	18,078 lb	21,868 lb
Retraction rate per sec. (540 rpm)	2 – 5 ft/s	2 – 5 ft/s	2 – 5 ft/s	2 – 5 ft/s	2 – 5 ft/s
Height (incl. grill)	4.76 ft	5.09 ft	5.74 ft	6.07 ft	7.05 ft
Protective grill	28 × 41 in	28 × 41 in	28 × 41 in	28 × 41 in	28 × 41 in
Top roller	47 in	51 in	59 in	63 in	71 in
Bottom roller (accessory)	17 in	19 in	30 in	33 in	33 in
Dozer blade	15 × 39 in	19 × 49 in	22 × 59 in	26 × 59 in	28 × 59 in
PTO axle height	15 in	19 in	20 in	24 in	22 in
3-point suspension	Cat I	Cat I	Cat I & II	Cat I & II	Cat II & III
Recommended tractor power	25 – 45 HP	25 – 45 HP	35 – 65 HP	40 – 70 HP	60 – 110 HP
