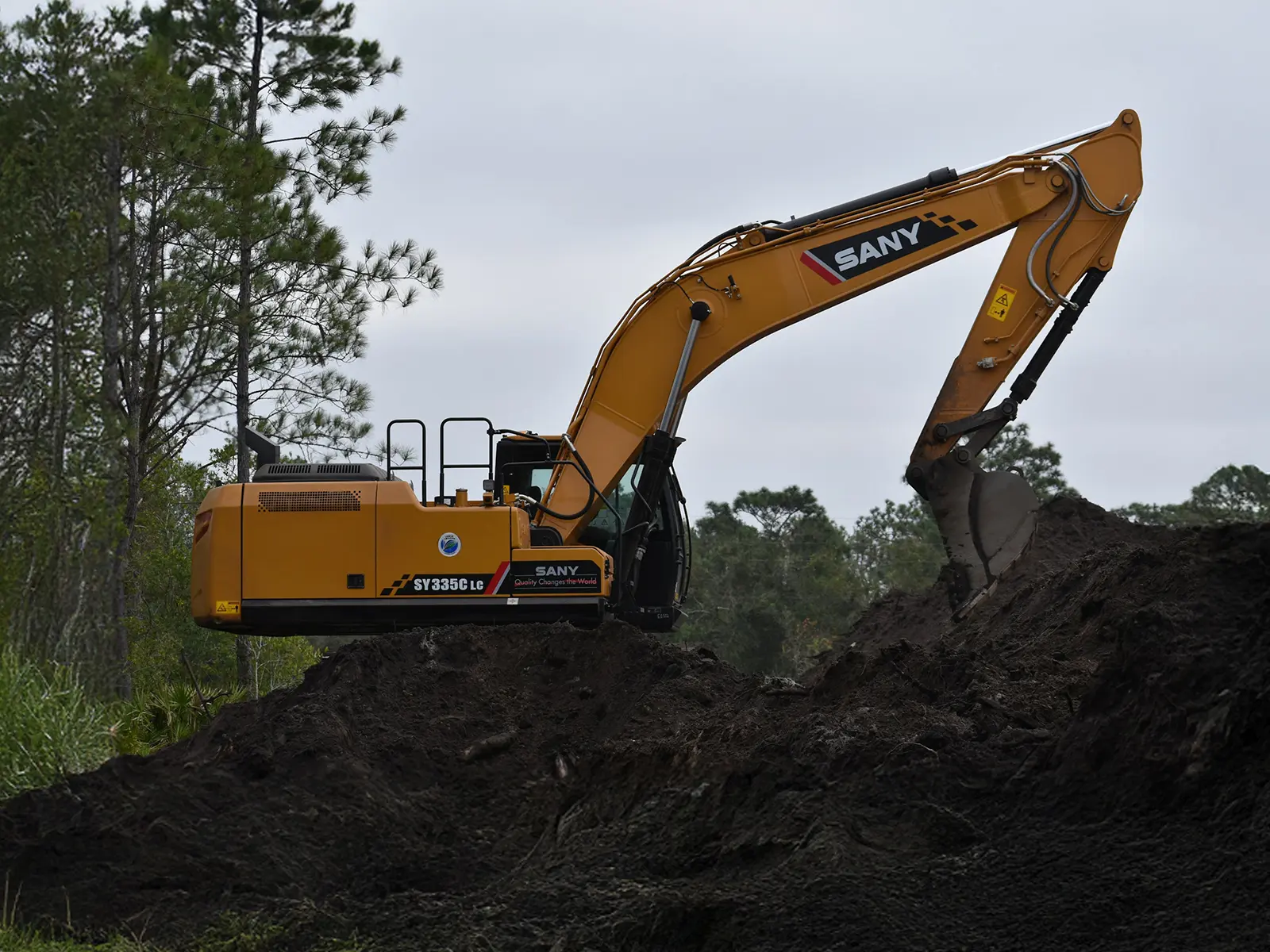

SY335C
Call for Pricing
Price
74,075 lbs | 22′ 4″ Dig Depth
Make:
SANY
Model:
SY335C
Category:
Construction, Excavators, Medium Excavators, SANY
| Overall Dimensions | |
|---|---|
| Boom Length | 6,150 mm 20' 2" |
| Stick (Arm) Length | - |
| Transport Length | 10,667 mm 35' |
| Transport Width | 3,396 mm 11' 2" |
| Transport Height | 3,470 mm 11' 5" |
| Upper Structure Width | 3,147 mm 10' 4" |
| Cab Height | - |
| Blade Height | - |
| Track Width (standard shoe) | 800 mm 31" |
| Track Gauge | 2,590 mm 8' 6" |
| Ground Clearance (minimum) | 550 mm 2' |
| Tail Swing Radius | 3,315 mm 10' 11" |
| Track Length on Ground | - |
| Track Length | 5,055 mm 16' 7" |
| Technical Specifications | |
|---|---|
| Operating Weight | 33,600 kg 74,075 lbs |
| Ground Pressure | 60.3 kPA 8.8 psi |
| Engine | Cummins L9 Stage V |
| Displacement | 9.8 L 598.0 in3 |
| Net Power | - |
| Gross Power | 209 kW 280.3 HP |
| Hydraulics | Positive Flow System |
| Main Hydraulic Pump | Axial Piston Variable Displacement |
| Operating Flow (maximum) | 560 L/min 147 gal/min |
| Operating Pressure (maximum) | 34.3 MPa 4,975 psi |
| Auxiliary Flow* | - |
| Auxiliary Pressure | - |
| Travel Motor | 2*Axial Piston Motor w/Parking Brake |
| Travel Pressure (maximum) | 34.3 MPa 4,975 psi |
| Travel Speeds (maximum) | 3.4 / 5.2 km/hr 2.1 / 3.2 mph |
| Travel Effort (maximum) | 245.0 kN 55,078 lbf |
| Grade Capability | 35° |
| Swing Motor | Axial Piston Motor w/Swing Brake |
| Swing Pressure (maximum) | 27.5 MPa 3,989 psi |
| Swing Speed (maximum) | 9.0 RPM |
| Undercarriage (standard) | Steel Track |
| Track Shoe Width (standard) | 800 mm 31" |
| Track Rollers (per side) | 9 |
| Carrier Rollers (per side) | 2 |
| Working Range | |
|---|---|
| Boom Length | 6,150 mm 20' 2" |
| Stick (Arm) Length | 3,200 mm 10' 6" |
| Maximum Digging Height | 10,497 mm 34.5" |
| Maximum Dumping Height | 7,359 mm 24' 2" |
| Maximum Digging Depth | 6,815 mm 22' 4" |
| Maximum Vertical Wall Digging Depth | 5,800 mm 19' |
| Maximum Reach at Ground Level | 10,870 mm 35' 8" |
| Minimum Swing Radius | 4,000 mm 13' 1" |
